Enable StatusNotification Translation

Customers can enable automatic translation of StatusNotification messages from OCPP 2.0.1 to OCPP 1.6 format by toggling the translate_status_notification_from_201_to_16 setting in the Admin Panel.

How to enable StatusNotification translation?

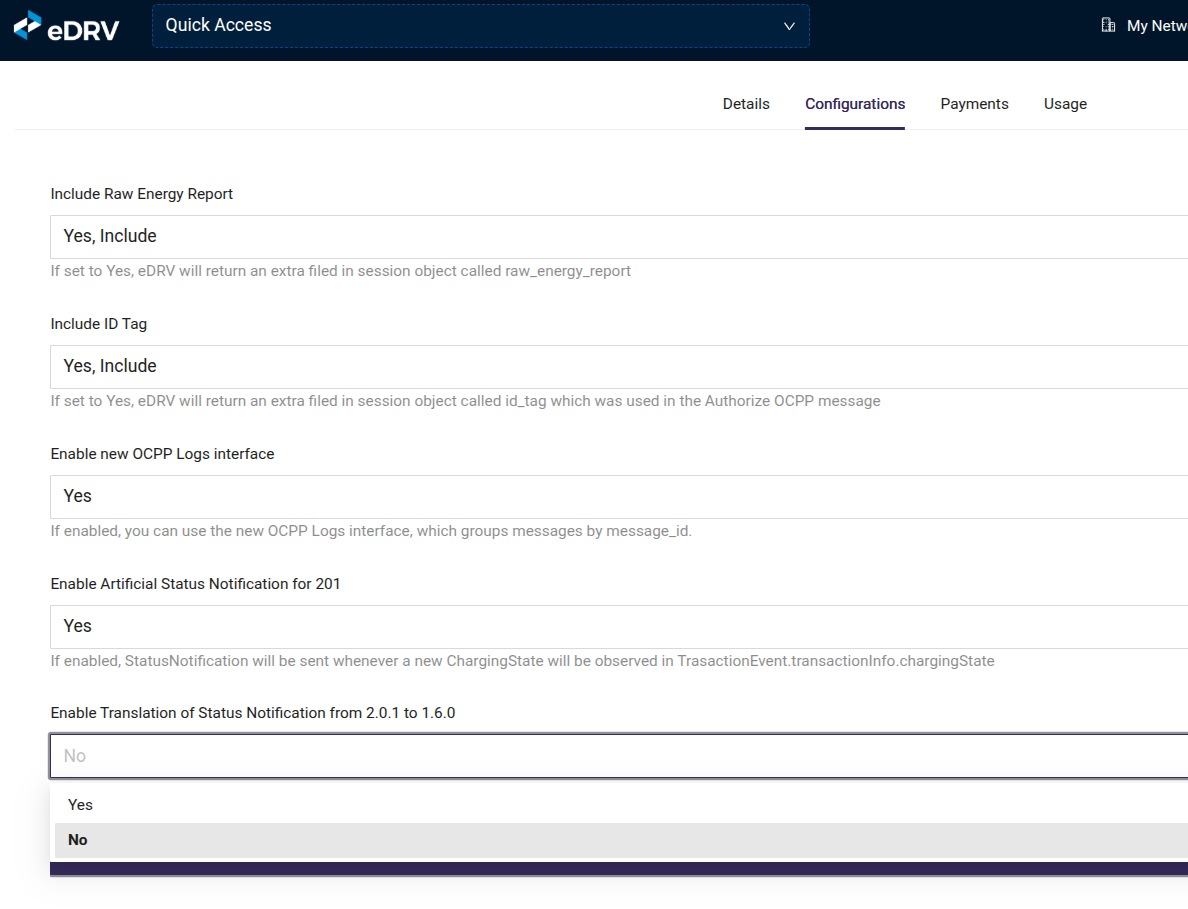

1. Navigate to https://devapp.edrv.io/account/organization?tab=configurations and change the value for Enable Translation of Status Notification from 2.0.1 to 1.6.0 from "No" to "Yes"

2. Click "Update" to save the changes

When enabled, this feature translates the StatusNotification data within the raw_message field of the chargestation.connector_status.updated webhook payload.

{
  "_id": "6825e9155d612600c88d9e6b",
  "data": {
...
raw_message": {
          "connectorId": 1,
          "errorCode": "NoError",
          "status": "Charging",
          "timestamp": "2025-05-15T13:16:05.500Z",
          "evseId": 1
        }
...
  "object": "chargestation",
  "type": "chargestation.connector_status.updated",
  "createdAt": "2025-05-15T13:16:05.711Z"
}
